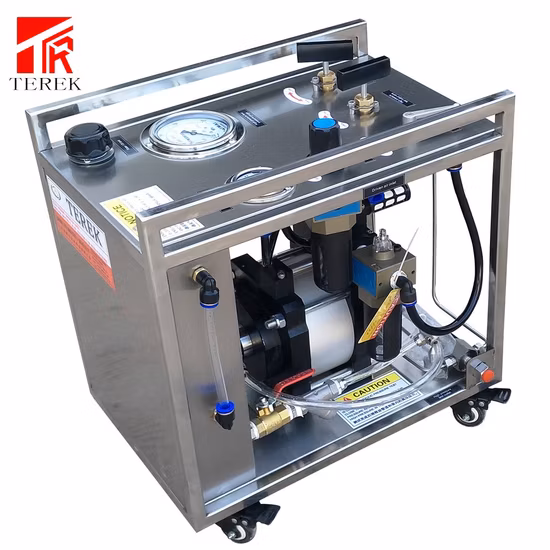

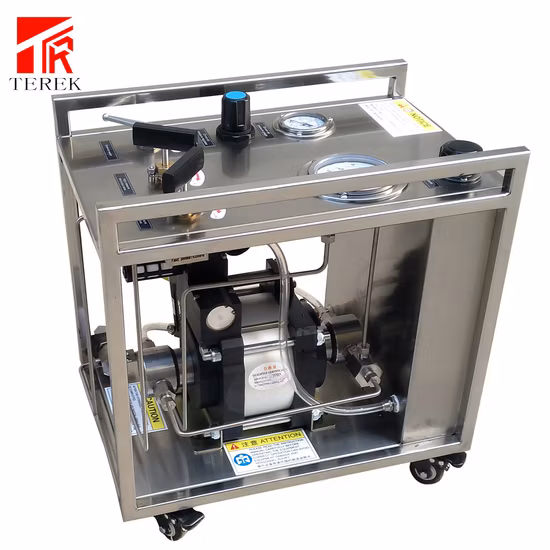

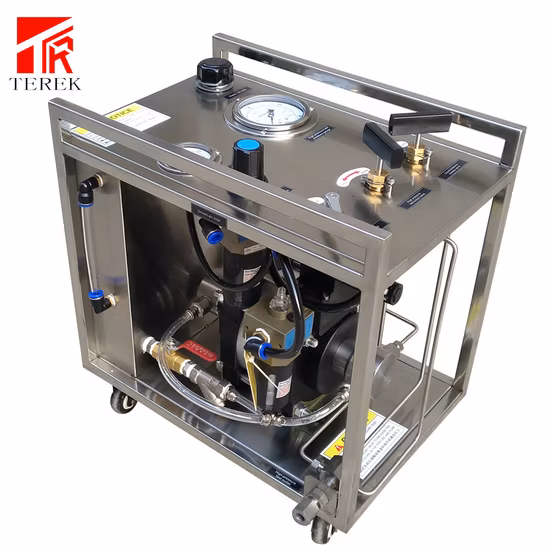

Air Driven Hydrostatic Pressure Testing Unit/Hydro Test Unit Pump

Overview

Basic Info.

Type	High-Pressure Pump
Position of Pump Shaft	Horizontal
Pumping Speed	30cycle/Min
Weight	32kg
Tank Capacity	8L
Output Pressure	Max.80MPa
Max Flow of Fuel Oil	40ml/Cycle
Application	Marine Diesel Engine
Transport Package	Wooden Case
Specification	490m x 430mm x 480mm
Trademark	zhenxing
Origin	Changzhou, China
HS Code	84331100
Production Capacity	10000

Packaging & Delivery

Package Size 490.00cm * 430.00cm * 480.00cm Package Gross Weight 32.000kg

Product Description

Product Description

High Pressure Pump Unit HPU-350High-pressure tool series, providing up to 3500bar hydraulic pressure at 7.5bar air inlet pressure.MAN 2200bar tool series.Analogue gauge, readings class 1.0Applicable to MAN70 mainframe and aboveMODEL : HPU - 3501. M a x . 3 5 0 M p a @ 0 . 7 5 M p a a i r i n p u t 2. M a x . 2 8 0 M P a @ 0 . 6 M p a a i r i n p u t3. PUMPING SPEED : APPROX. 400 CYCLES/MIN. AT 7BAR AIR INPUT4. Min. flow:0.45L/min5. TANK CAPACITY : 8.0 LITER6. AIR INLET PORT : 1/2″ BSP FEMALE WITH INCREASE TO M42 ADAPTER7. LIQUID OUTLET PORT : 1/4″ MALE (CEJN 10.125.6203)8. APPROX. DIMENSION : 490m x 430mm x 480mm9. WEIGHT : 32Kg

Product Parameters

Output Pressure	Max3300Bar
Can be powered by hand	No
Pump speed	Approx400 Cycles/Min.At8.0 Bar Air Input
Max Flow At No Pressure	Approx0.45 Litres/Min.At 8.0 Bar Air Input
Weight	32Kg
Dimensions	490*380*440(mm)
Pneumatic inlet	Iso228/1-G1/2
Hydraulic outlet	Iso228/1-G1/4

Our Advantages

Characteristics:Air driven gas booster pump/Pneumatic hydro test pumpAir driven - no electricity requiredNo airline lubricator requiredWide range of models with different ratiosBuilt-in-cooling on most modelsEasy to install,operate and maintenanceNo heat, flame or spark risk and explosion proofAir Gas Hydro Test Unit ApplicationsPressure test with gasGas transferGas recoveryCharging of gas cylinder and accumulator with nitrogenSupply for isolating gas systemsGas assisted injection mouldingTransfer of oxygen cylindersLeakage testHydrostatic Testing for valves, tanks, pressure vessels, pressure switches, hoses, pipes and tubing, pressure gauges, cylinders, transducers, well casings, gas cylinders and air craft componentsCalibration for safety valves

Certifications

Changzhou ZHENXING Environmental Technology Engineering Co., Ltd. has been established for many years, is the ultra-high pressure hydraulic field focused on research and development, design, production and sales of innovative technology enterprises. Since its inception, has always adhered to the talentoriented, honest business principle.The company's main products are: bolt stretchers, hydraulic nuts, hydraulic jacks, pneumatic hydraulic pumps, manual hydraulic pumps, electric hydraulic pumps, nozzle test benches and a variety of presses, hydraulic systems, intelligent hydraulics and so on. Covers steel, metallurgy, coal mining machinery, ships, wind power, hydropower and many other applications.The company has a complete set of German imported production equipment and testing equipment and automatic packaging assembly line, on-site use of ERP, EMIS management system charge, bar code traceability management system, to achieve fine, process energy production.

Packaging Details1. Outside packaging: Standard export wooden packing;2. Inner packaging: Stretch Film;3. Customized packaging acceptable.Shipping1. Small quantity: By international exress, such as DHL, TNT, FEDEX, UPS, etc. Depending on the customers' choice. Goods will arrive within 7 days in normal cicumstances;2. Large quantity: By sea transportation. Goods will arrive in 30~45 days, according to the diatance.Product ApplicationOur products are widely used all over the world, especially in Papermaking, Metallurgy, Petrification, Bridge, Construction, Electricity, Shipping, etc.Our Service1.24 hours online service;2. One year warranty, repair and service for the whole life.3. Question report will be replied in 48 hours.4. Quality guaranteed.
